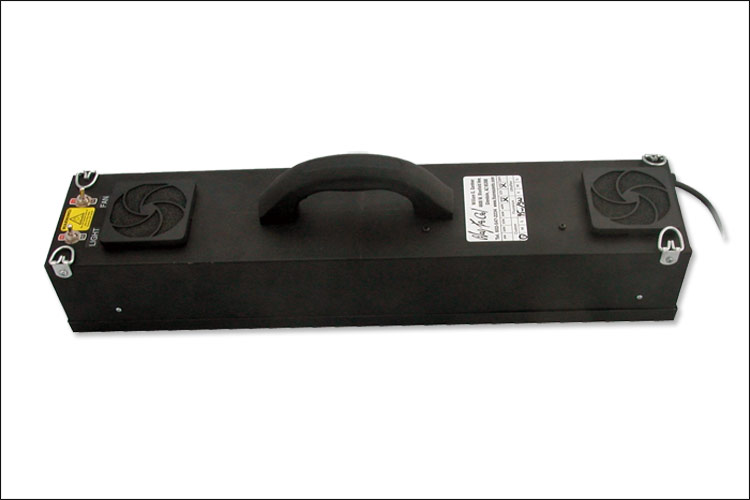

95 Watt UV Lamps
Product Features
- Single, Dual, or Triple Bulb
- Internal Cooling Fans
- Rugged Construction
- Made In USA
Product Specifications
- 24.5" x 5" x 6" (single and dual lamps)
- Our most powerful UV lamp!
Product Description
These lamp fixtures are available only in AC versions and the ballasts are universal input which automatically selects between 110-115 volts or 220-240 volts. The ballasts feature a programmed start cycle that will energize tubes/bulbs/lamps for an average of 50-60,000 on/off cycles before burning out the tube/bulb/lamp. The tubes/bulbs/lamps have 4 pin 2G11 bases. No one manufactures a standard 95 watt compact fluorescent tube/bulb/lamp in anything other than UV C. WTC had some 95 watt tubes/bulbs/lamps custom manufactured with UV B and UV A phosphors.
The switch that powers the fan also sends power to the other switches. The result is that the tubes/bulbs/lamps cannot be turned on unless the fan is already on. This ensures the longest possible operating life of the fixture and its components.
The "95 Quad"
The 95 watt fixtures can also be custom manufactured in a "Quad" version with white light LEDs and with a remote control having 5 switches to select between any or all of the wavelengths - UV A, UV B, UV C, White light, and power/fan. Switch #1 turns on the fan and power to the other switches. Download 95 Quad info & spec sheet (PDF).
