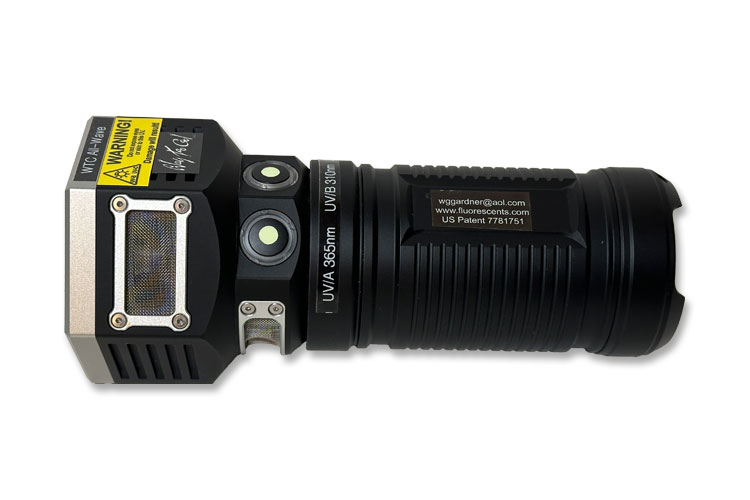

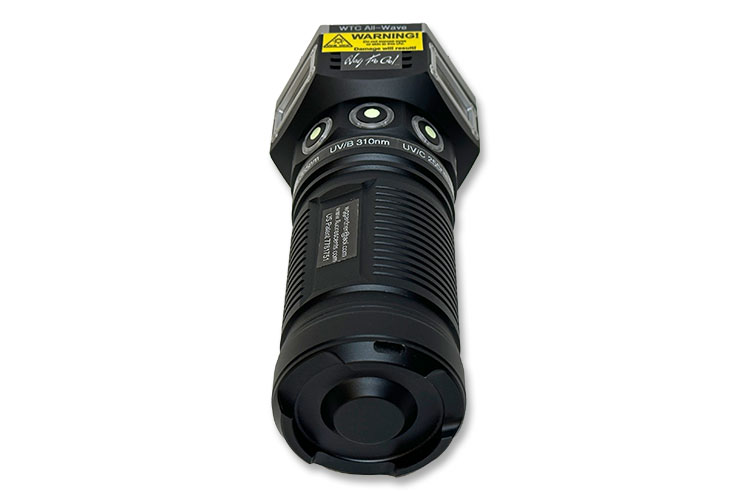

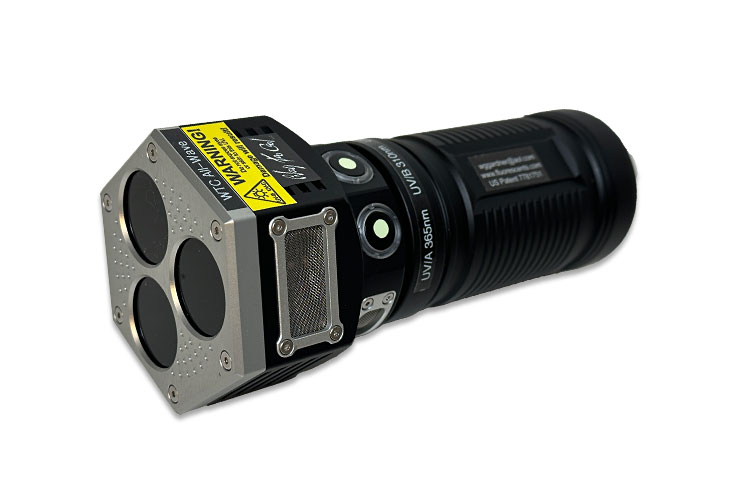

All-Wave UV LED Flashlight
US Patent #7781751
Product Features

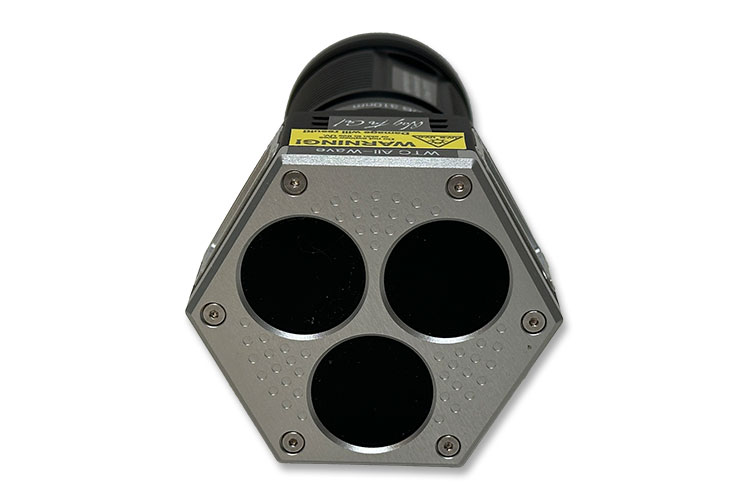

- 3 distinct UV LED elements
- Provides individually controlled UV-A (365 nm), UV-B (310 nm) and UV-C (255 nm) output
- Phosphorescent dots on each button
- Integrated cooling fan for prolonged operation
- Ergonomic knurling pattern offers a comfortable yet secure grip
- Rugged design and construction for durability
Product Specifications
- Three individual power buttons

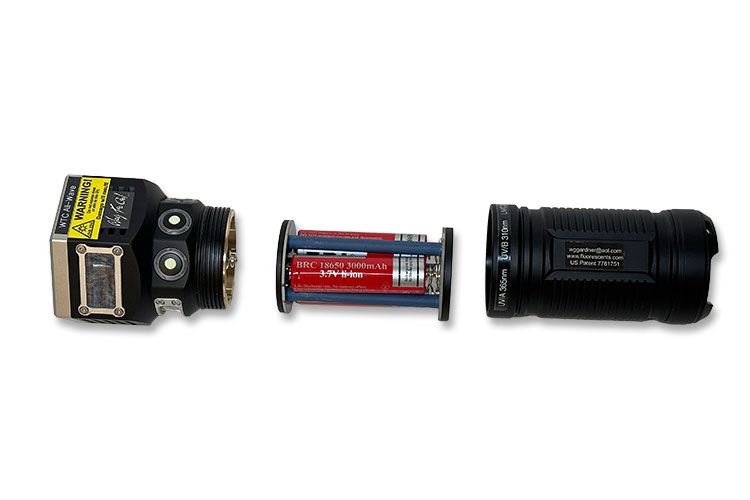

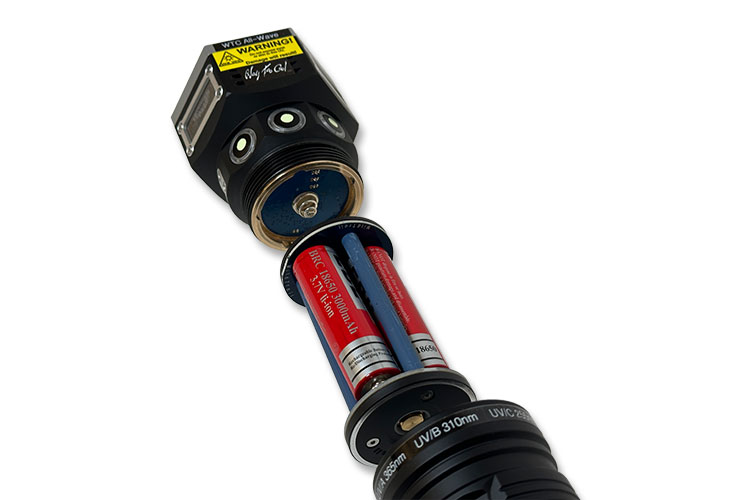

- Battery 3x 18650 lithium-ion battery (protected) OR 3x 21700 batteries
- Output - see description below
- Dimensions 6 5/8" long (170 mm) x 2.1" diameter (55 mm) (body) x 3.0" (78 mm) (head)
- Weight 1 lb 11 oz (749 g)
All-Wave UV Flashlight Price
| Description | Part Number | Price (Each) |
|---|---|---|
| All-Wave UV LED Flashlight, three 18650 2,500 mA batteries, and a USB 4 slot charger. | ALLWAVE | $325.00 |
| Additional 18650 protected batteries (2,500 mA) | -- | $6.00 ea. |
Product Description
Harness the full spectrum of UV illumination in your hand with the All-Wave UV LED Flashlight, the ultimate tool for professionals and enthusiasts alike. This innovative flashlight features three individual ultraviolet LED elements, each dedicated to producing shortwave (SW), midwave (MW), and longwave (LW) UV output. Whether you're a mineralogist, collector, or hobbyist, the All-Wave UV LED Flashlight is your go-to tool for high-performance UV lighting. Its advanced features and rugged design make it a powerful tool for any portable UV illumination need.
Way Too Cool was one of (if not the first) to manufacture a three-wavelength lamp, starting with our original three-fixture UV lamp from the early 2000s. Now, we are pleased to offer this three-wavelength UV flashlight.
Key Features
- Triple UV Output: Integrated shortwave, midwave, and longwave UV LEDs provide optimal performance for a wide range of applications. Each wavelength can be turned on/off individually.
- Active Cooling: The flashlight head incorporates active cooling to ensure consistent UV output during extended use.
- Rugged Construction: Built to withstand tough environments, the All-Wave light has a durable, impact-resistant housing that ensures reliability wherever you go.
- Powerful and Flexible: Compatible with three 18650 rechargeable batteries or three 21700 batteries, offering flexibility and extended runtime.
- Exceptional for Fluorescent Mineral Identification: Brings out vivid fluorescent colors in minerals and other materials with precision and clarity.

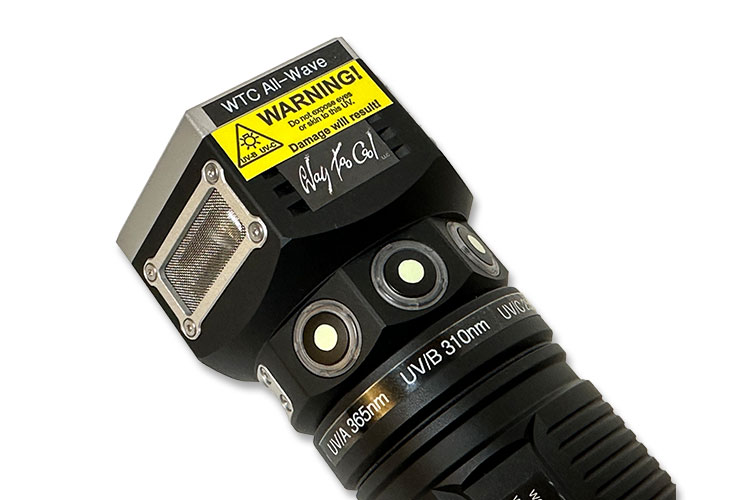

SAFETY WARNING
The LED is a Class 3B LED hazard. Do NOT look directly into the beam of the flashlight and do not point it towards any eyes.
Battery and Charging Information
Some of the WTC Dealers offer different options for the batteries and the charger. When purchased directly from WTC, the flashlight set comes with three 2,500 mA protected rechargeable Li-ION batteries, the filter glass pre-installed, and a USB charger.
The batteries will arrive partially discharged because of postal regulations. You should consider fully charging the batteries before extended use. We provide 18650 batteries that have been tested to be between 2,500 mA and 3,000 mA.
The set also comes with a simple-to-use Li-ION smart USB charger. While the batteries are charging the LED will be red. When the batteries are fully charged, the LED turns a solid green and the batteries should be removed from the charger. If you have questions about the charger, please contact us with your concerns.
Dealers
The All-Wave UV flashlight is available for purchase from our Authorized Dealers.
Patent Information
William Gardner has US Patent #7781751 for the use of colored glass absorption filters (and other kinds of wavelength changing absorption filters for use with UV LED battery operated devices). If someone imports, makes, uses, offers to sell, or sells filtered UV LED flashlights in the U.S., using colored glass absorption filters such as Hoya glass, Kokomo glass, or ZWB2 glass, they are infringing US Patent #7781751. William Gardner has authorized Way Too Cool, LLC to use his patent and he is willing to license the use of the patent to other manufacturers of filtered UV LED Flashlights and similar UV battery operated devices. If you buy a filtered UV flashlight or other similar battery operated product that does NOT have U.S. Patent number 7781751 on it - please be aware that it is COUNTERFEIT and that selling it, or purchasing it, infringes on the patent and is illegal.
United States Code: Infringement of Patents, 35 U.S.C. § 271-272
(a) Except as otherwise provided in this title, whoever without authority makes, uses, offers to sell, or sells any patented invention, within the United States, or imports into the United States any patented invention during the term of the patent therefor, infringes the patent.
(b) Whoever actively induces infringement of a patent shall be liable as an infringer.
(c) Whoever offers to sell or sells within the United States or imports into the United States a component of a patented machine, manufacture, combination, or composition, or a material or apparatus for use in practicing a patented process, constituting a material part of the invention, knowing the same to be especially made or especially adapted for use in an infringement of such patent, and not a staple article or commodity of commerce suitable for substantial non-infringing use, shall be liable as a contributory infringer.
